0.8mm Satin Weave Heat Treated Fibre Glass Fabric Fabric Welding Fire Blanket
1. Description:
HT800 is currently the most commonly used glass fiber insulation cloth on the market. Its usage is from the routine ship and marine maintenance in the oil and gas, petrochemical, and metal construction industries. HT800 is effectively used to shield moderately to severe welding sparks. The tight-fitting and heat-treated satin weave pattern makes the fabric thicker, heavier, stronger, and more resistant to welding thermal shock, sparks compared to other thinner textured fabrics. High-strength satin weave HT800 also has a hairless texture by Removal of sizing agent in glass fiber, which can prevent irritation to exposed skin compared with other low-quality fabrics and asbestos cloth. It is widely used in the shipbuilding and repair industry Places where heat insulation, heat insulation lining, and a lot of welding are carried out.
2. Datasheet for Heat Treated Fiberglass Cloth
| Style | HT800 |
| Structure | 8HS Satin |
| Yarn | Warp | CC9 33 4*2 |
| | weft | CC9 300Tex |
| Thickness | 1mm |
| Color | Gold/White |
| Density | 18*12/cm |
| Thread Count Ends/cm | Warp | 18 |
| | Weft | 12 |
| Tensile Strength N/5cm | Warp | 6800 |
| | Weft | 5600 |
| Width/cm | 100, 120, 150, 180, 200 |
| Length/m | 50 |
| Weight | 840±30gsm |
3. Features:
- Abrasion resistance
- Chemical resistance
- Resistance to oil spills
- Water repellent
- Weatherproof
- Fire Resistance
- Thermal Insulation
4. Main Applications
This kind of raw material is effectively prevented people or goods caused by welding sparks. Now it has been widely used in the shipbuilding industry when construction and repairing work, also in heat -isolation, insulation, and welding in the Petrochemical Industry.

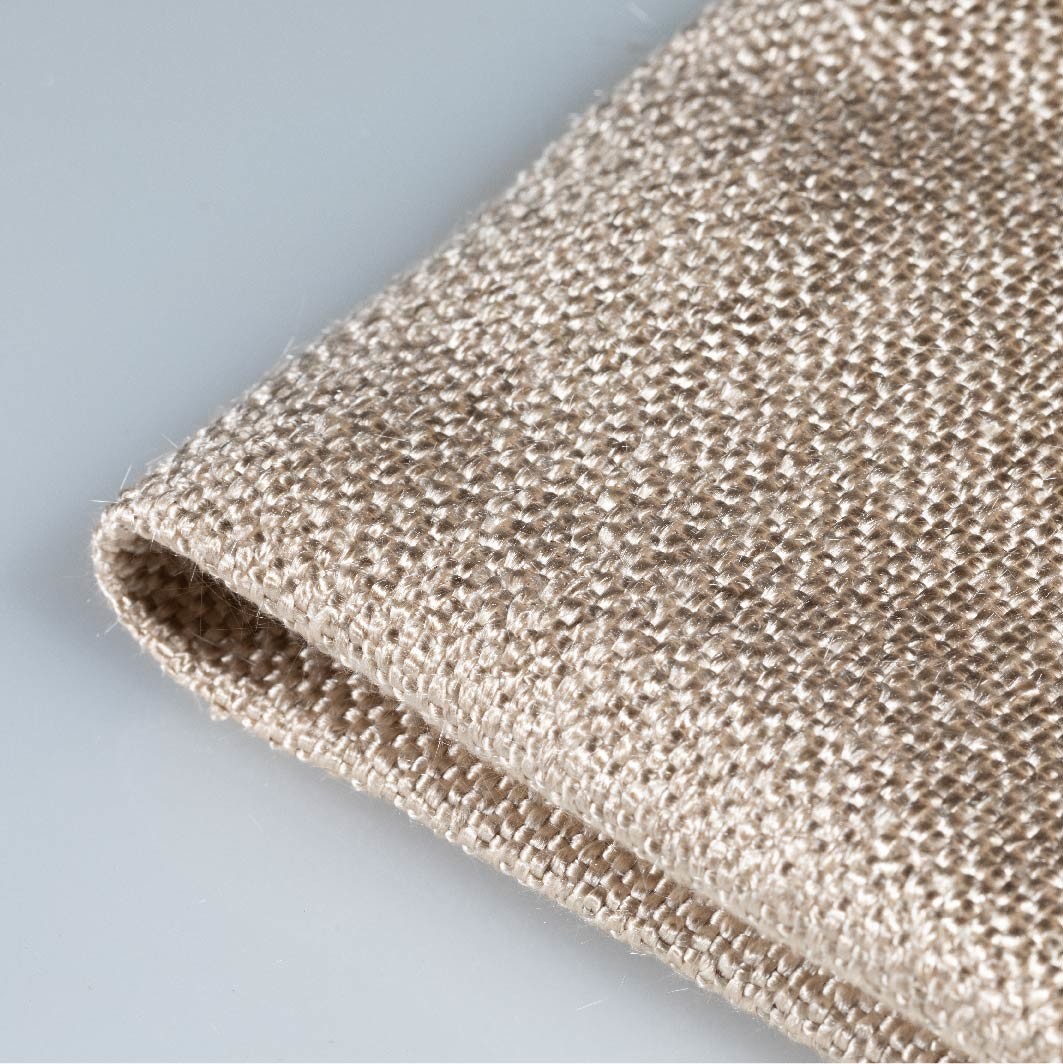

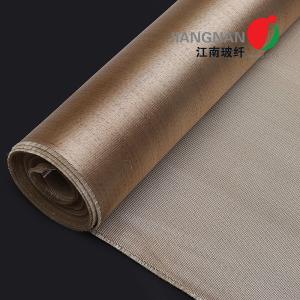

5. Detail Product Images
6. Packaging Detail Images
7. Much More Related Products
| Cloth Type | Style | Thickness | Weight |
| Woven Fiberglass Fabric | HT3732 | 0.4mm | 430gsm |
| HT800 | 0.8mm | 830gsn |
| HT3788 | 1.6mm | 1650gsm |
| Texturized Fiberglass Fabric | HT2025 | 0.7mm | 580gsm |
| HTM30 | 1.2mm | 1200gsm |
| Reinforced Fiberglass Fabric | HT 666 Reinforced with Wire | 0.6mm | 650gsm |
